How to: Install Android OS on iPhone 2G

Planetbeing has successfully ported Android on iPhone 2G and iPhone 3G. Although he released the instructions on how to install android OS on iPhone along with the android for iPhone source but those instruction are not for newbies.

Note: Follow this guide on your own risk. We cannot be held responsible if anything goes wrong. These instructions are for testing and educational purposes only.

Here’s a bunch of stuff that you’ll need before you start:

  1. IMPORTANT! Jailbroken iPhone 2G. Jailbreaking guide can be found here.
  2. iPhone Firmwares from Here
  3. VirtualBox (link).  Get the right version Windows/Mac
  4. VirtualBox Ubuntu Image (link).  Download number 10, Ubuntu Linux 9.10 codename Karmic Koalax86
  5. iPhone Explorer (Mac – Windows). If you’re on Linux you can use FTP such as FileZilla instead.
  6. Android images and sources (link)
  7. Patched images (link).

Step 1: Preparation
Let’s get some of the basics out of the way:

  1. Open Task Manager
  2. Kill the iTunes Helper process
  3. Install iPhone Explorer
  4. Connect your iPhone to your Mac/PC
  5. Run iPhone Explorer
  6. Click the Change Root button
  7. Select “/” Real iPhone Root Directory
  8. Browse to private/var
  9. Copy ramdisk.img, userdata.img, cache.img and zImage from Downloads#5 (Android images and sources) to that var directory
  10. Copy system.img and android.img.gz from Downloads#6 (patched images) to the that var directory
  11. That’s all the Android files on your iPhone, now to make them run!

Step 2: Setting Up Virtual Box

  1. Install VirtualBox
  2. Open VirtualBox
  3. Go on File > Virtual Media Manager
  4. Make sure Hard Disks is selected
  5. Click Add
  6. Locate the ubuntu-9.10.vdi file (download#3) and select it
  7. Close Virtual Media Manager
  8. Go on Machine > New
  9. Click Next
  10. Under Name enter “Ubuntu”
  11. Select Linux Operating System
  12. Select Ubuntu Version
  13. Click Next
  14. Set an amount of RAM, the default should be fine
  15. Click Next
  16. Select “Use existing hard disk”
  17. Select the ubuntu-9.10.vdi
  18. Click Next
  19. Click Finish
  20. Select that new machine to start up Ubuntu
  21. The password to login is: reverse

Step 3: Setting Up Ubuntu
Almost there – if this feels a bit long, just consider how short and simple each step is!

  1. Click System (top bar) > Administration > Synaptic Package Manager
  2. Enter the password: reverse
  3. In the quicksearch box, type libusb-1.0, click the Check Box next to libusb-1.0-0 and select Mark for installation
  4. In the quicksearch box, type libreadline, click the Check Box next to libreadline5 and select Mark for installtion
  5. Click Apply
  6. When it’s all installed close the Package Manager
  7. Open Firefox (in Ubuntu)
  8. Download openiboot installer from here
  9. Click Places (top bar) > Downloads
  10. Right-click and click Extract Here
  11. Click Applications (top bar) > Accessories > Terminal
  12. Without the quotes, type ‘cd Downloads/openiboot’
  13. Restart your iPhone in Recovery Mode (power off, hold down Home button, connect to USB cable)

Step 4: Getting Android Working!
Well done on getting this far! This is where the fun beings (credits to WinX Blog for these instructions –link)

  1. In VirtualBox, the Ubuntu Window, go on Devices > USB Devices and select iPhone (Recovery Mode)
  2. In the terminal type (without quotes): ’sudo su’
  3. Enter the password: reverse
  4. In the terminal type ./loadibec openiboot.img3
  5. You’ll see the OpeniBoot screen appear on your iPhone
  6. Hold down the power button a couple of seconds (iPhone)
  7. The bottom option, openiboot console, will become selected
  8. Press Home (iPhone).  You’ll see a bunch of text appear and stop at “Welcome to openiboot”
  9. In VirtualBox, the Ubuntu Window, go on Devices > USB Devices and select iPhone (OpeniBoot Mode)
  10. In terminal type su ./oibc
  11. Enter the password: reverse
  12. If this doesn’t work just type: ./oibc
  13. You’ll see the same text from the iPhone in the Terminal
  14. Type (without quotes) ‘nor_read 0×09000000 0×0 1048576′ and press Enter
  15. Wait for it to say Done
  16. Type (without quotes) ‘~norbackup.dump:1048576′
  17. This creates a backup of your NOR memory – save a copy on USB stick, or email it to yourself or something
  18. Type install, press Enter.  When this is done you’ve got openiboot installed on your iPhone.  You’re done!

Step 5: Finishing Off
What you’ve achieved up til now is Android files on your iPhone, and then installing openiboot so that you have an option to start iPhone OS or Android when you turn on your phone.  Openiboot was necessary because that’s the only way right now that you can boot into Android.  Here’s how to finish off and get into Android:

  1. If you still have Terminal open with the oibc still running, just type ‘reboot’, press Enter and skip to step 3
  2. If you don’t have Terminal open, disconnect your phone, turn it off and back on
  3. When openiboot appears press Power button to switch to openiboot console (bottom option)
  4. Hold down the Home button

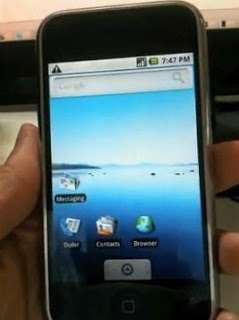

  5. Android will start to boot, but it might take a while

Now, if you didn’t understand the above guide or if you want some support you can watch that video below which explaining how to install Android OS on iPhone 2G

Google Ads:

Update 1: Android on iPhone 3G is available for Download, More details from Here.
Update 2: Now you can Install Android on iPhone 2G and 3G using iPhodroid by Automatic Method, More details from Here.
